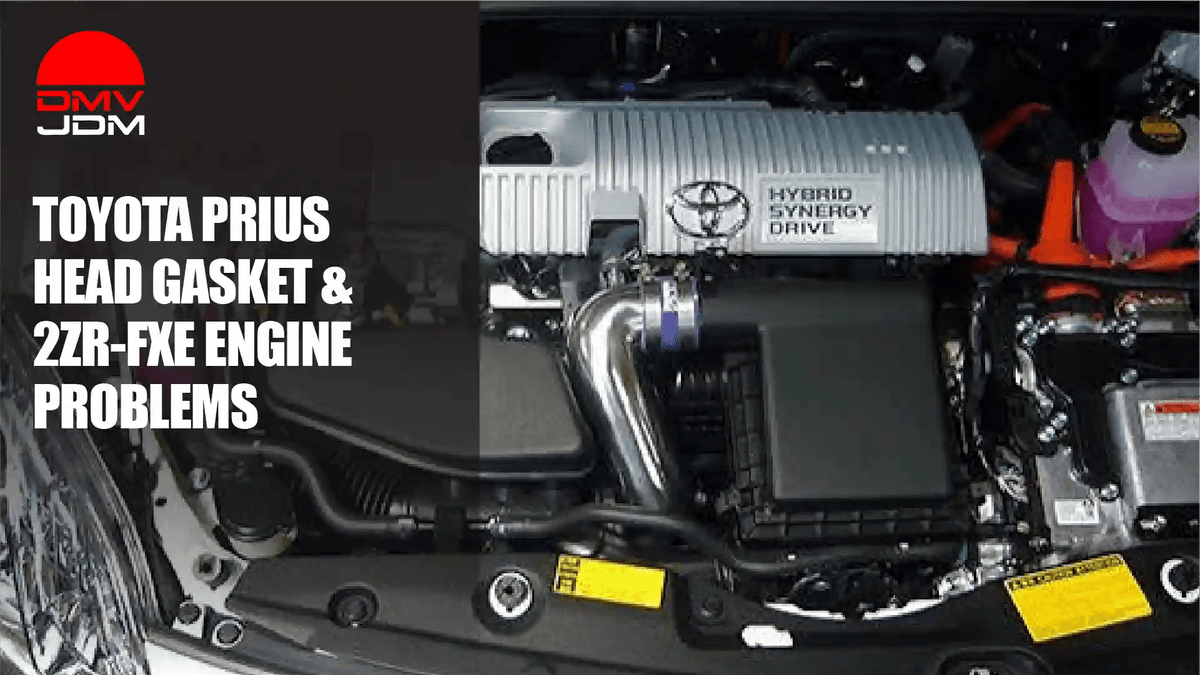

Toyota Prius Head Gasket & 2ZR-FXE Engine Problems (Gen-3)

If your 2010 to 2015 Prius is running hot, losing coolant, or throwing a random misfire code, there's a good chance you're dealing with the infamous 2ZR-FXE head gasket issue. This is one of the most talked about problems on the Gen-3 Prius, and it's not just bad luck, it's tied to how the EGR system interacts with the engine over time. Let's break down why it happens, how to spot it early, and what your real options are.

The 2ZR-FXE and Which Prius Models Are Affected

The 2ZR-FXE is the gas engine half of the Gen-3 Prius's Hybrid Synergy Drive system. It's a 1.8L four cylinder that works alongside the electric motor to power the car. This engine was used in:

• Toyota Prius (2010 to 2015, Gen-3 body style)
• Toyota Prius v (wagon version, same engine family)
• Toyota Prius c uses a different, smaller engine, so it's not part of this specific issue

The closely related 2ZR-FE (non-hybrid version, found in the Corolla and some other Toyota models) shares a lot of design DNA but isn't paired with the same EGR setup, so it isn't affected the same way. More on that in the FAQ below.

Why the Head Gasket Fails: The EGR Connection

Here's the chain of events that leads to head gasket failure on these engines:

1. The EGR system routes a small amount of exhaust gas back into the intake to help reduce emissions and improve fuel efficiency.
2. Over tens of thousands of miles, carbon builds up inside the EGR cooler and passages.
3. This carbon buildup restricts flow and creates hot spots, especially around the cylinder head near the EGR cooler location.
4. Repeated heat cycling in that concentrated area stresses the head gasket material until it starts to break down.
5. Once the gasket starts leaking, coolant can seep into the cylinders or oil, or escape externally, and the engine loses its ability to regulate temperature properly.

This isn't a manufacturing defect in the traditional sense, it's more of a design quirk where the EGR cooler placement creates a weak point over time. Toyota has issued technical service bulletins addressing EGR cleaning and cooler replacement, which tells you this is a known and acknowledged pattern, not just internet rumor.

Symptoms to Watch For

• Coolant level dropping without any visible external leak
• White smoke from the exhaust, especially when starting the car cold
• Overheating warning on the dash, even if it happens occasionally
• Rough idle or random misfire codes, which can happen if coolant sneaks into a cylinder
• Sweet smell (that's the coolant) coming from under the hood
• Milky residue on the oil cap or dipstick, a sign coolant is mixing with oil

If you notice more than one of these at the same time, don't wait it out. A head gasket that's already leaking gets worse fast once you keep driving on it.

Prevention and Maintenance

• Get the EGR cooler and passages cleaned every 60,000 to 90,000 miles, even if nothing feels wrong yet
• Use the correct Toyota coolant (pink, Toyota Super Long Life) and keep the system topped off
• Watch your temperature gauge, and don't ignore even brief spikes
• Address any check engine light promptly instead of clearing it and hoping it goes away

A little proactive maintenance here genuinely goes a long way, since EGR cleaning is way cheaper than a head gasket job.

Repair vs Replace: Realistic Costs

Here's the tricky part: if the engine has been running hot for a while before you caught it, there's a real chance the cylinder head itself is warped, not just the gasket. That means the shop has to machine the head flat again, or replace it, which adds a lot to the bill. And even after all that work, you're still driving around on the original engine's mileage and wear.

For a full walkthrough of engine replacement pricing, check out our engine replacement and swap cost guide. And if you want to understand the difference between rebuilt, remanufactured, and used engines before you buy, we've got that covered too.

How the Hybrid System Makes This Trickier

One thing that makes the Prius different from a regular gas car is how the engine and electric motor share the workload. The 2ZR-FXE doesn't run constantly like a normal engine, it cycles on and off depending on speed, battery charge, and driving conditions. That start-stop pattern actually plays a role here too, since frequent heat cycling (engine going from cold to hot to cold again) puts extra stress on gasket materials over the life of the car.

This is also why diagnosing a Prius head gasket issue isn't always straightforward. Because the gas engine isn't always running, symptoms like overheating or rough idle might only show up under certain conditions, like highway driving where the engine works harder and longer. Some owners don't notice anything unusual around town, then get a nasty surprise on a road trip. If you're doing a lot of highway miles, it's worth paying extra attention to your temperature gauge and coolant level, since that's where symptoms tend to show up first.

Can You Drive on a Failing Head Gasket?

Technically, yes, for a little while. Practically, it's not a great idea. Once a head gasket starts leaking, a few things can happen depending on where the leak is:

• If coolant leaks into a cylinder, you'll get white exhaust smoke and misfires, and continuing to drive can cause hydrolock in rare severe cases
• If coolant leaks externally, you'll lose coolant steadily and risk overheating without warning
• If coolant mixes into the oil, it breaks down lubrication and can damage bearings and other internal parts

Basically, every path leads to more expensive damage the longer you wait. If your Prius shows even one or two of the symptoms above, it's worth getting a compression test and a cooling system pressure test done sooner rather than later. Both tests are relatively cheap and can confirm whether you're actually dealing with a head gasket issue before you commit to a repair.

Diagnosing It the Right Way

A shop worth trusting will usually run through a few checks before recommending a full head gasket job:

• Cooling system pressure test to check for external or internal leaks
• Combustion leak test (sometimes called a block test) to detect exhaust gases in the coolant
• Visual inspection of the oil and coolant for cross contamination
• Compression test across all cylinders to rule out other issues

Skipping straight to "you need a new engine" without these checks is a red flag. A proper diagnosis tells you whether you're dealing with just the gasket, a warped head, or something else entirely, and that changes your repair cost significantly.

Choosing a Low Mileage Replacement Engine

If your head gasket has already failed and warped the head, or if you're just tired of babysitting an aging engine, a low mileage replacement 2ZR-FXE is often the smarter long term move. You get:

• Fresh internals without the accumulated heat damage from a prior overheating event
• No guesswork about whether the EGR issue already did hidden damage elsewhere
• A reset on mileage, which matters a lot if you're planning to keep the Prius for years

Before buying any replacement engine, new or used, it's worth knowing what to check. Our guide on how to inspect a used engine before you buy covers the essentials so you're not stuck with a lemon.

It's also worth thinking about the source. JDM engines are typically pulled from vehicles in regions with strict mileage and inspection standards, which is why they're a popular choice for Prius owners looking for a reliable swap without paying dealership prices for a brand new unit. Just make sure whatever engine you're buying comes with some kind of compression test results or mileage verification, so you're not just trusting a sticker.

FAQ

Why do Gen-3 Prius head gaskets fail?
The main cause is carbon buildup in the EGR cooler, which creates localized overheating near the cylinder head. Over time, that heat stress breaks down the head gasket.

What are the warning signs?
Coolant loss without a visible leak, white exhaust smoke, occasional overheating warnings, rough idle, and milky residue on the oil cap are the biggest red flags.

Is it worth replacing the engine?
If the head has already warped from overheating, or if you're facing a second failure after a previous repair, a replacement engine is usually the better long term value compared to repeated repairs.

Does the 2ZR-FE (Corolla) share the same issue?
Not really. The 2ZR-FE doesn't use the same EGR cooler setup paired with the hybrid system, so it doesn't see this specific failure pattern nearly as often.

Bottom line

The 2ZR-FXE head gasket issue is well documented and largely comes down to EGR carbon buildup over time. Regular EGR maintenance can help you avoid it altogether, but if you're already dealing with overheating or coolant loss, don't wait around, since a small leak now can turn into a much bigger repair bill later.
