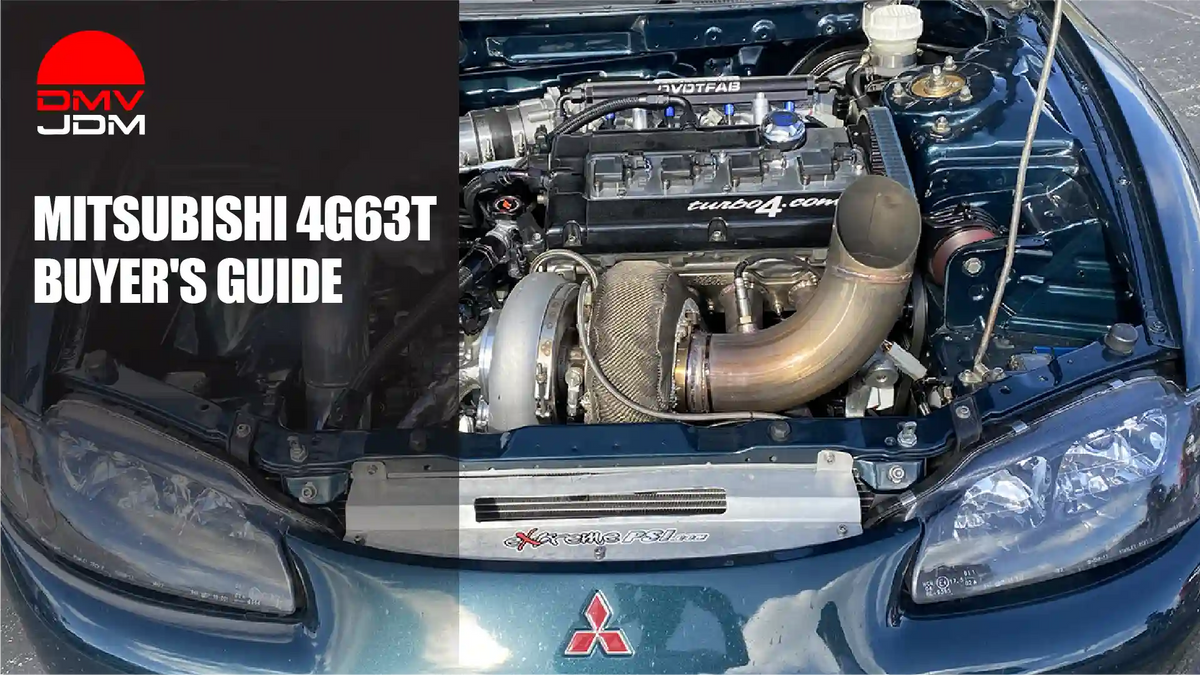

Mitsubishi 4G63T Buyer’s Guide: 6-Bolt vs 7-Bolt, Power & Heritage

The 4G63 engine is Mitsubishi’s 2.0L turbo four, and it’s one of the most loved performance motors out of Japan. It powered the Galant VR-4, the Eclipse GSX, and every Lancer Evolution from I to IX. Finding one is easy but picking a good one takes a bit more homework. This guide covers 6-bolt vs 7-bolt blocks, power potential, and what to check before you pay.

4G63T Heritage: Galant VR-4 to Evo IX, DSM

Mitsubishi first put the 4G63T in the Galant VR-4 in 1987. It was an all wheel drive sedan built with rally in mind. In 1992, Mitsubishi dropped that drivetrain into the smaller Lancer. That car became the first Evo.

The US got the engine through Diamond Star Motors. Fans call those cars DSMs. The list includes the Eclipse GSX and GS-T, the Eagle Talon TSi, and the Plymouth Laser. Production ran from 1990 to 1999.

Meanwhile, the Evo kept the 4G63T through the Evo IX. Some JDM family vehicles used it too. The Airtrek Turbo R and RVR are common donors, and many come out as imported 4G63T engines. You can see a range of them in our JDM engines collection.

6-Bolt vs 7-Bolt: Why It Matters

The names come from the flywheel. A 6-bolt engine has six bolts holding the flywheel to the crank. A 7-bolt has seven so count them, and you know what you have.

Mitsubishi used the 6-bolt design in early DSMs, from 1990 to around mid 1992. The 7-bolt took over after that. Most later DSM engines, and most Evo engines you’ll find as imports, are 7-bolt.

Each of the designs has fans. The 6-bolt has stronger rods, so builders often pick it for big power. The 7-bolt has more aftermarket support, since Mitsubishi built more of them.

The main worry with a 7-bolt is crank walk. The thrust bearing wears, and the crank starts to move front to back. It doesn’t hit every engine. Owners also report that later 7-bolts got a better thrust bearing, so a late engine is usually the safer bet.

Don’t mix parts between the two. Bearings, oil pumps, and water pumps won’t swap.

Specs & Power Potential

• Displacement: 2.0L (1,997 cc)
• Bore and stroke: 85 mm x 88 mm
• Block: cast iron, closed deck
• Head: DOHC, 16 valves
• Turbo: TD05 family on most turbo versions
• Stock power: about 190 to 210 hp in DSMs, 271 hp in the US Evo VIII, and 286 hp in the US Evo IX (Mitsubishi Motors North America)

The closed deck, cast iron block is a big reason this engine takes boost so well. Many builders report around 400 hp on a stock bottom end. That assumes a healthy engine and a safe tune. Forged parts push past 500 hp.

In most builds, the turbo, injectors, and tune hit their limits before the block does. That’s real tuning headroom.

What to Check When Buying a Used 4G63 (Mileage, Compression)

A used 4G63 engine can be a great deal. It can also be a rod knock waiting to happen. Our guide on how to inspect a used engine covers the basics. For the 4G63 specifically, start here:

• Bolt count. Confirm 6-bolt or 7-bolt before you pay. It decides which parts you need.
• Mileage proof. Ask for export papers or an auction sheet. Low mileage is nice, but service history matters more. A 60k engine run hard on a bad tune can be worse than a 100k engine that got care.
• Compression. Test all four cylinders. Readings should sit within about 10 percent of each other. A low cylinder points to rings or valves. Check the factory manual for exact numbers.
• Crank end play. Ask the seller to measure it. Extra play can mean thrust bearing wear.
• Oil and coolant. Milky oil, metal flakes, or oil in the coolant are red flags.
• Turbo. Look for shaft play, oil leaks, and smoke on startup.
• Timing belt. If the history is unknown, plan to replace it right away.
• What’s included. Ask about the turbo, manifold, ECU, harness, and sensors. Missing parts add up fast.

4G63T vs 4B11T (Evo X)

The Evo X engine is the 4B11T. Mitsubishi retired the iron block 4G63 for it and moved to an aluminum block. In US trim, the 4B11T made 291 hp, compared with 286 hp for the Evo IX. Mitsubishi also dropped the balancer shaft, according to its own engine release. The 4B11T runs a timing chain, too, and it uses variable valve timing on both cams.

So, to know which one is better depends on your car. For a DSM or an older Evo, the 4G63T fits and usually has the bigger parts catalog. For an Evo X, the 4B11T engine is the right match. We break the comparison down in our 4G63 vs 4B11 post. When you need an Evo X engine, you should start with our Mitsubishi engines collection.

Swap & Installation Notes

Plan the swap before you buy. A few details trip people up.

• A 7-bolt in a 6-bolt car usually needs a different flywheel. Sensors, the ECU, and the harness may need changes too.
• Replace the timing belt, water pump, tensioner, and seals while the engine is out. It costs less than doing it twice.
• Match the transmission to the engine. A 6-bolt and a 7-bolt don’t share the same bellhousing setup in every case.

Emissions rules matter, too. EPA policy allows engine swaps only when the finished car matches a certified setup, as this EPA guidance explains. State rules differ, so check with your state emissions office first.

Browse each 4G63 engine for sale in our Mitsubishi engines collection, or compare other imports in the JDM engines section.

Frequently Asked Questions

What’s the difference between a 6-bolt and 7-bolt 4G63?

A 6-bolt 4G63 has six flywheel bolts and thicker rods, while a 7-bolt has seven bolts and the later design with a larger parts catalog. The two use different bearings, oil pumps, and water pumps, so you can’t mix their parts.

Which cars came with the 4G63T?

The 4G63T came in the Galant VR-4, Eclipse GSX and GS-T, Eagle Talon TSi, Plymouth Laser RS Turbo, and Lancer Evolution I to IX. JDM models like the Airtrek Turbo R and RVR used it too.

How much power can a 4G63T handle?

Many builders report about 400 hp on a stock bottom end, and forged builds often pass 500 hp. A healthy engine and a safe tune matter more than the number.

Is the 4G63T reliable?

Yes, when it’s maintained, but timing belt service, crank walk on some 7-bolt engines, and hard tuning are the main risks.

4G63T vs 4B11T: which is better?

Neither wins everywhere: the 4G63T suits DSM and older Evo builds, and the 4B11T is the right pick for an Evo X.

What should I check when buying a used 4G63?

Confirm whether it’s a 6-bolt or 7-bolt, then check compression, crank end play, oil condition, and timing belt history. Ask for proof of mileage, too.
